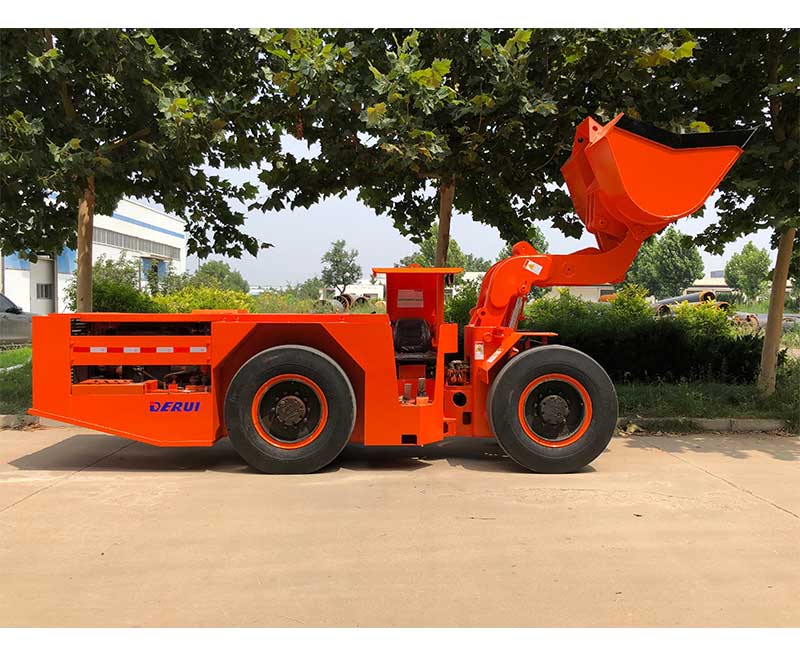

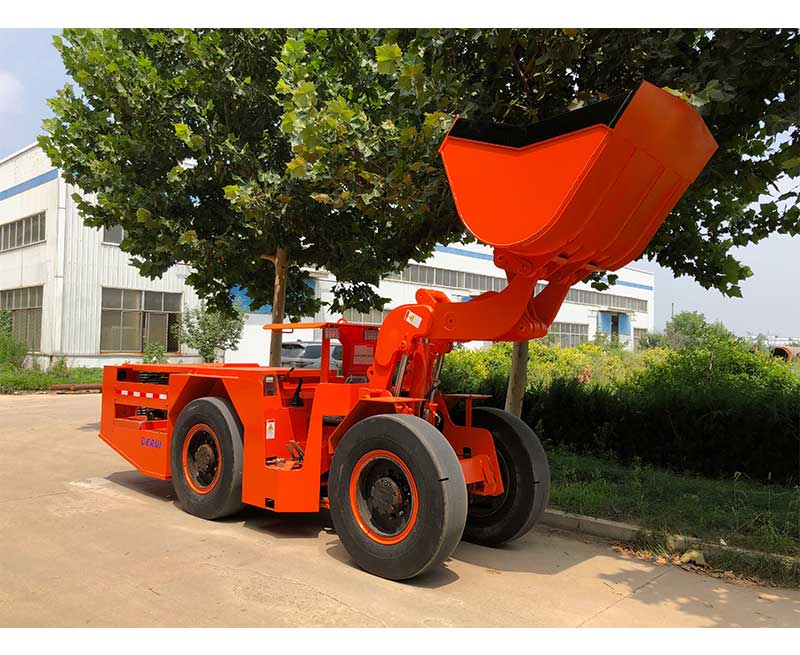

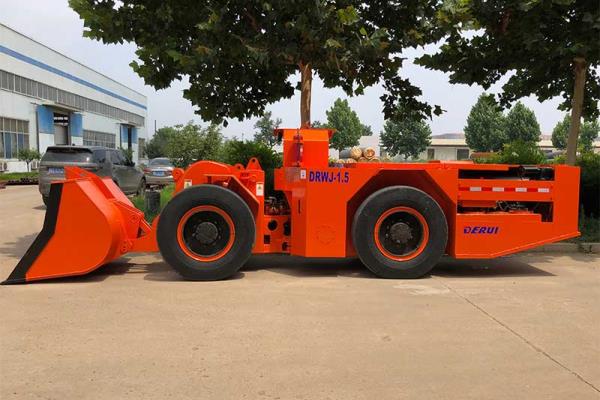

The underground loader DRWJ-1.5 is designed for hard rock mines with confined spaces. With a capacity of 3.5 metric tons, this loader is ideal for narrow spaces and limited tunnels. The combination of compact dimensions and powerful performance is the key to the high efficiency of the DRWJ-1.5 in tight spaces.

The machine is designed to maximize space for the operator’s free movement, helping to reduce fatigue and increase productivity during operation.

Main Features and Technical Specifications

  • Selectable engines: DEUTZ BF6L914 / F6L914 / BF4M1013EC (EU Stage II compliant) and D914L06 (Stage III A compliant)
  • Power transmission system: DANA 32000 series gearbox with C270 series torque converter
  • Axles: KESSEL D71 or MERITOR manufactured in China
  • Brake: Multi-layer disc spring-applied (SAHR)
  • Customized buckets optimized for existing hard rock
  • Ejector bucket: available with proven performance in various countries
  • Hydraulic components from top brands: PARKER, REXROTH

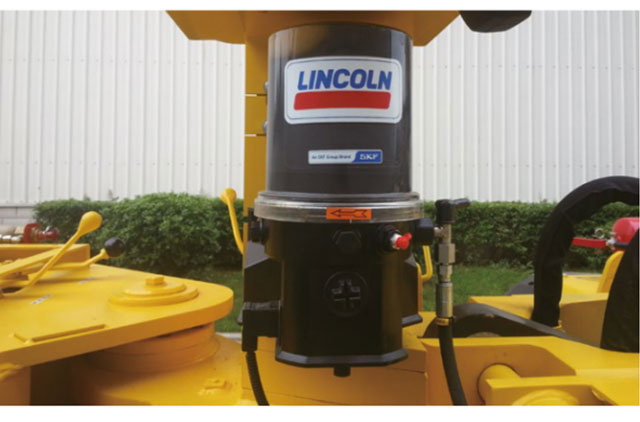

  • Central lubrication system: optional
  • Remote control system: optional
  • Exhaust system: equipped with catalytic purifiers and silencers from reputable brands
