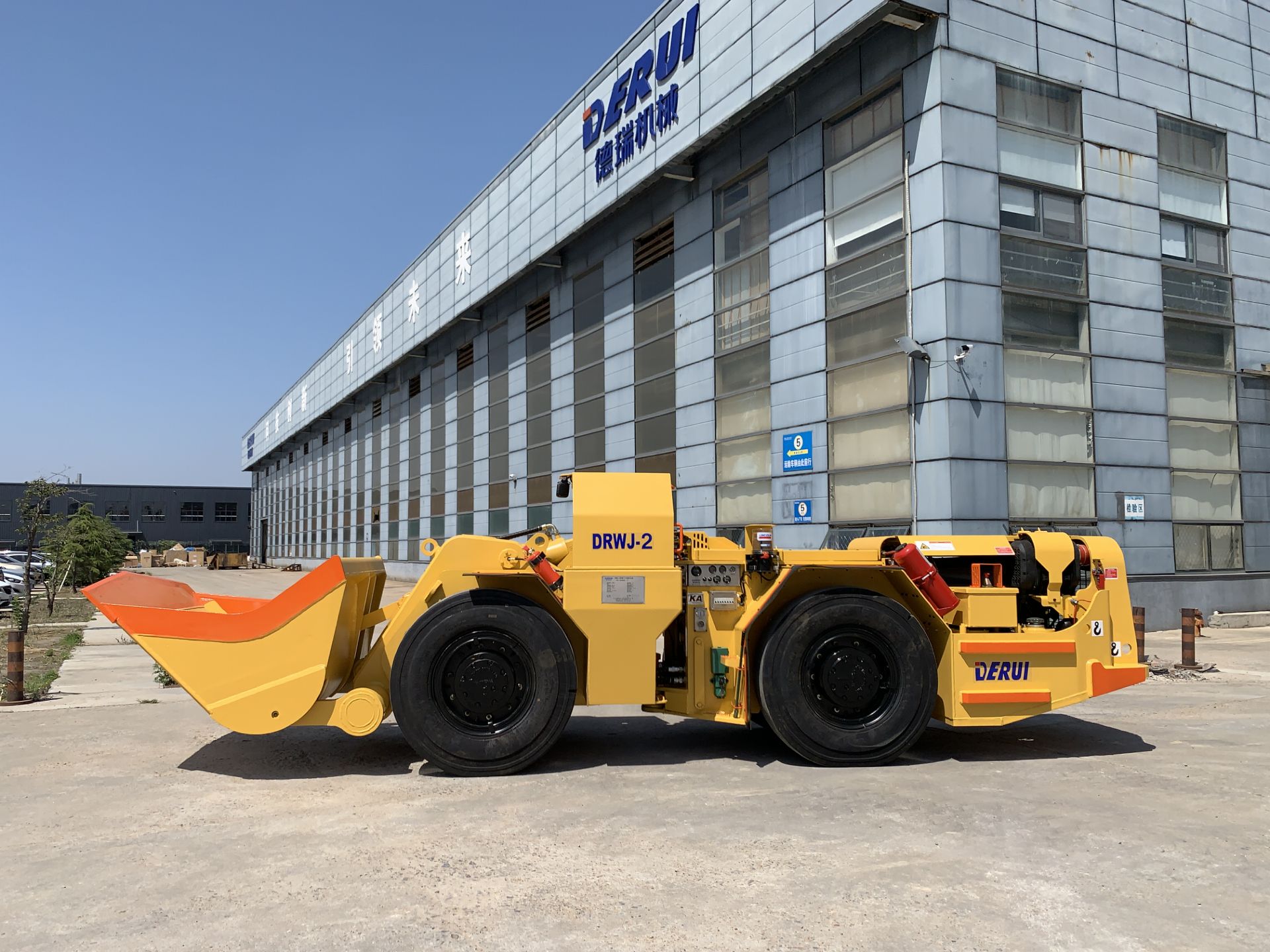

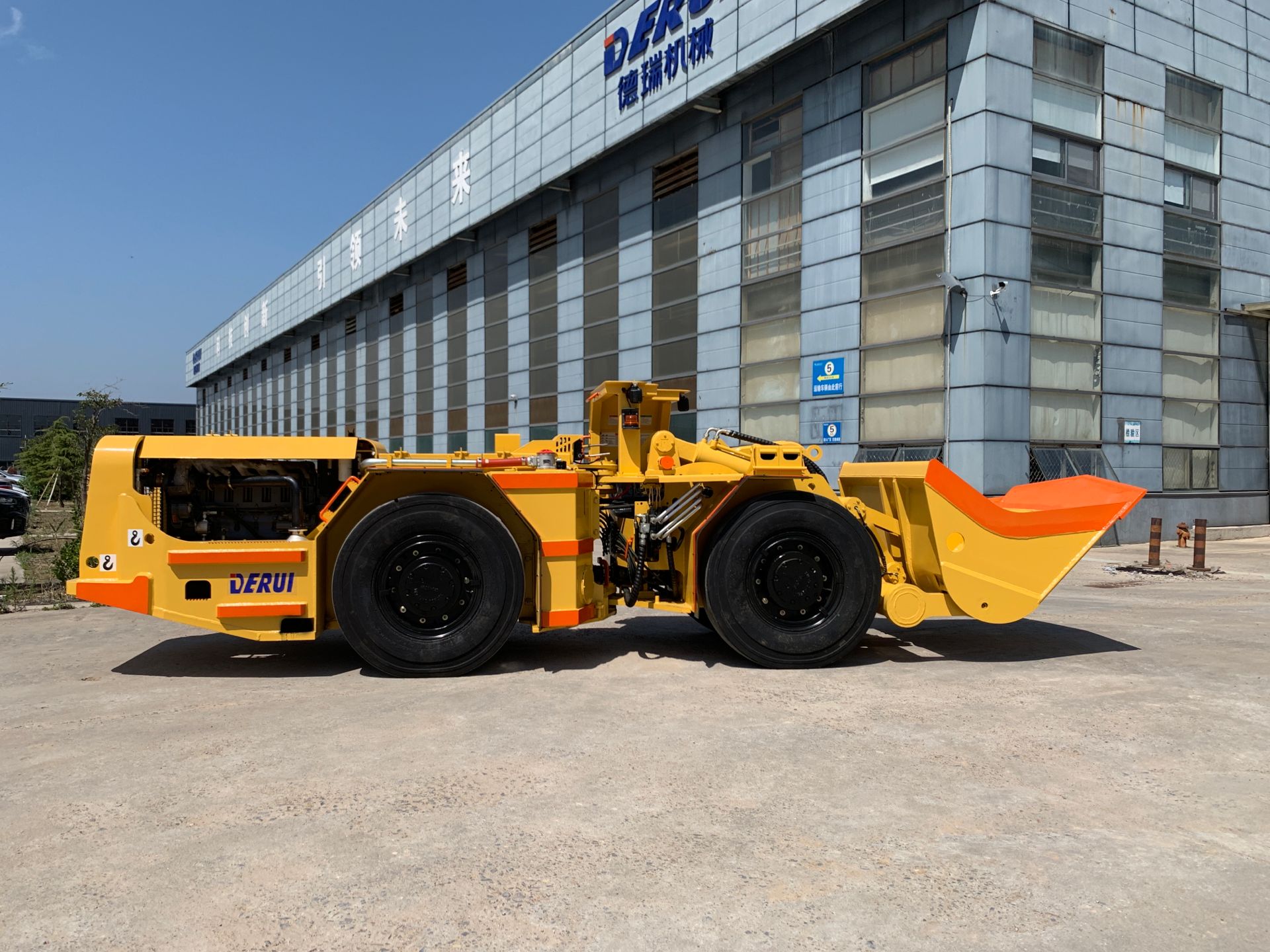

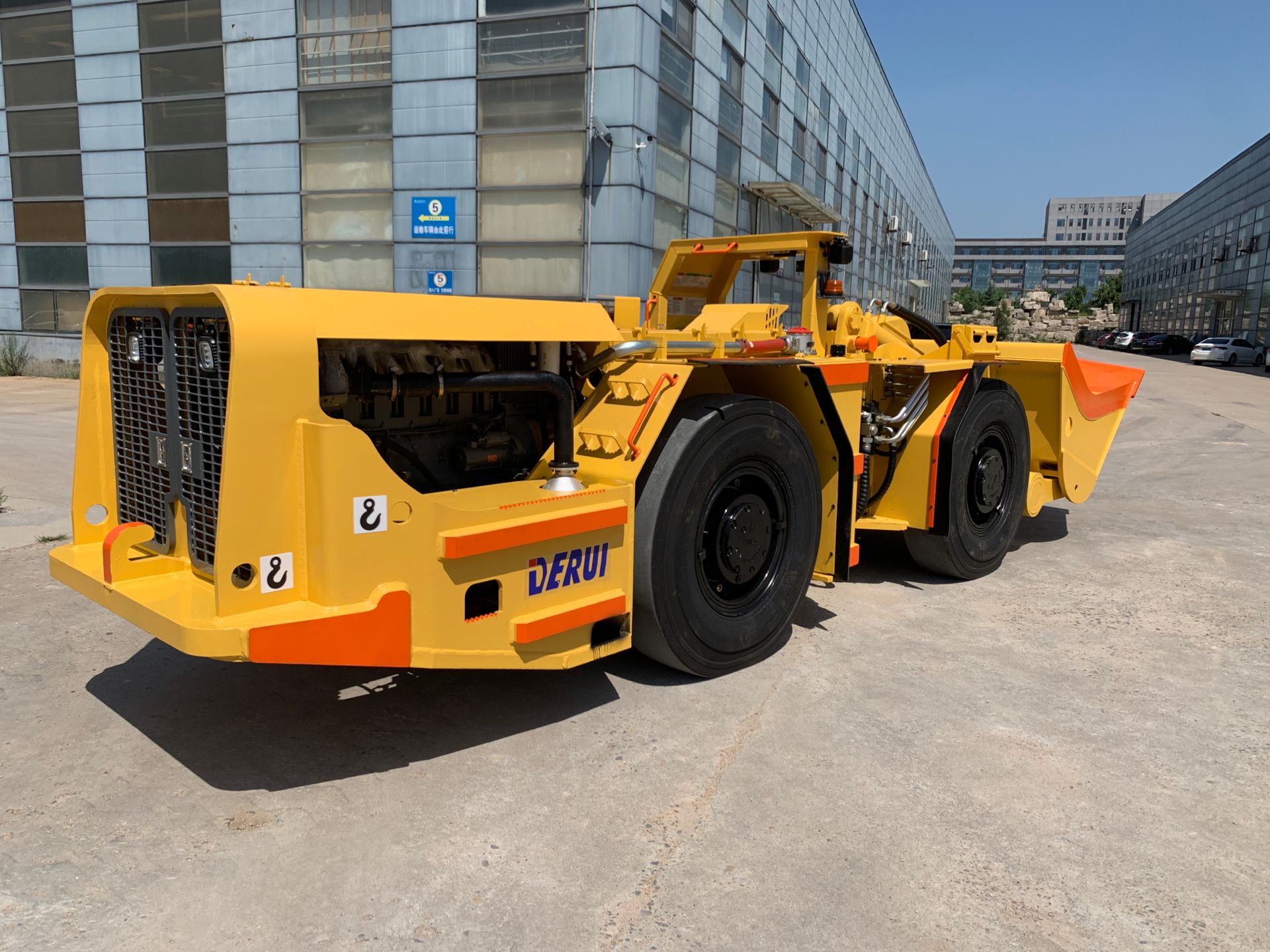

The DRWJ-2G hard rock loader with a 4.0 metric ton capacity is designed specifically for tunnels and hard rock mines with narrow spaces. This model is an upgraded version of the DRWJ-2 and features a completely new design. It comes with an operator cabin certified with ROPS/FOPS and a low-emission engine to ensure stable extraction. Daily maintenance at ground level enhances service safety. The ST2G model is designed for easy access to all daily service points to maximize operational time and enable fast and efficient maintenance.

Main Features and Technical Specifications

  • Engine options: DEUTZ BF6L914 / F6L914 / BF4M1013EC meeting EU Stage II standards, and CUMMINS QSB4.5 meeting Stage III standards
  • Power transmission system: DANA 32000 series gearbox with C270 series torque converter
  • Axle: MERITOR (manufactured in China)
  • Brake: Spring-applied multi-disc (SAHR)
  • Customized buckets optimized for hard rocks
  • Material throw-capable bucket: available and approved in multiple countries

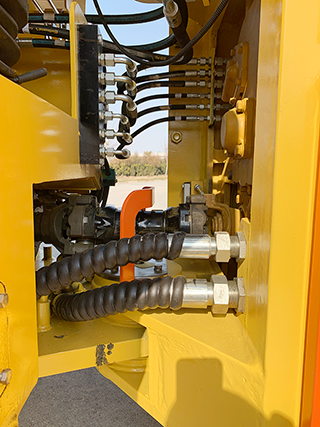

  • Hydraulic components from top global brands: PARKER, REXROTH

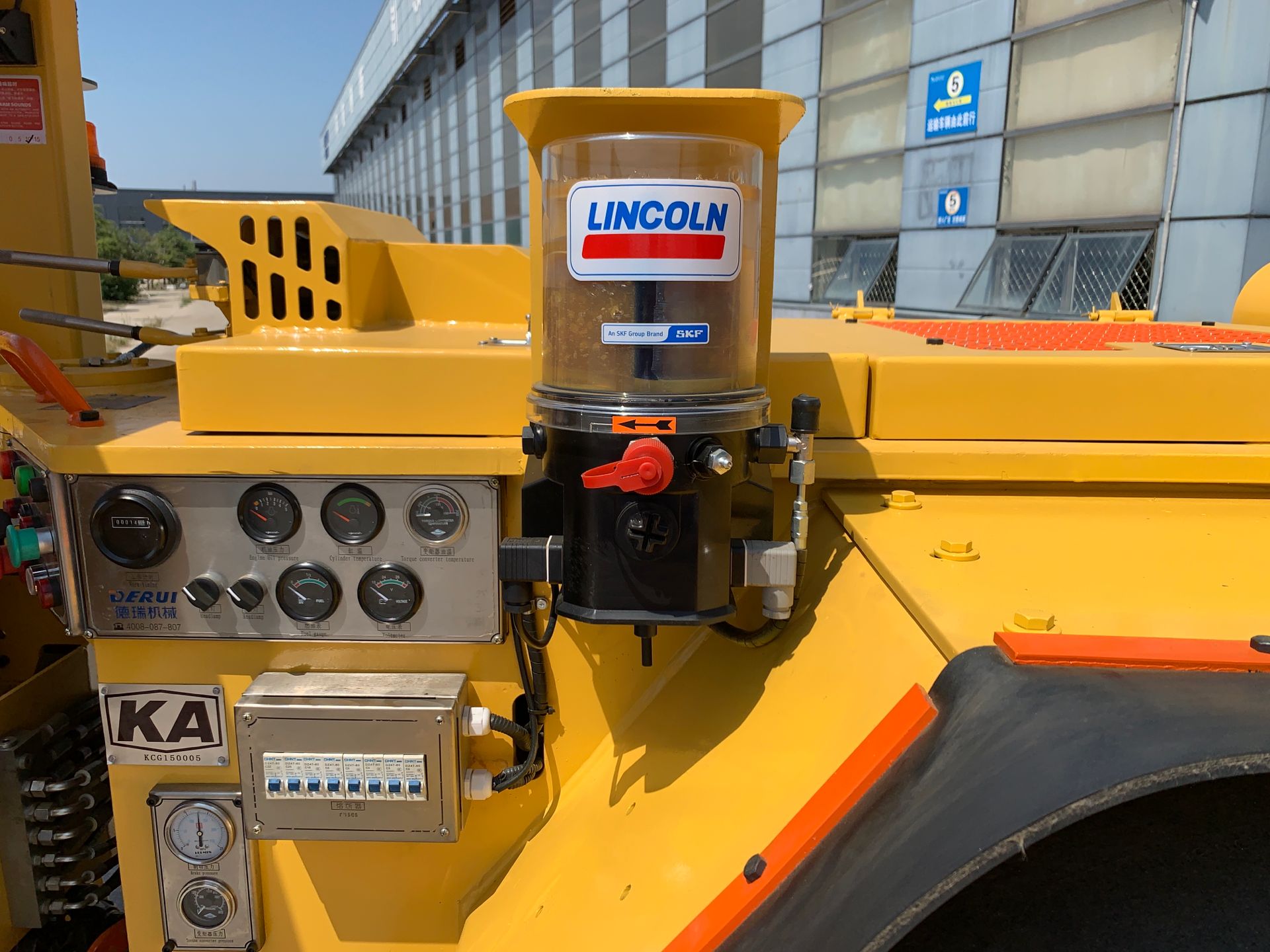

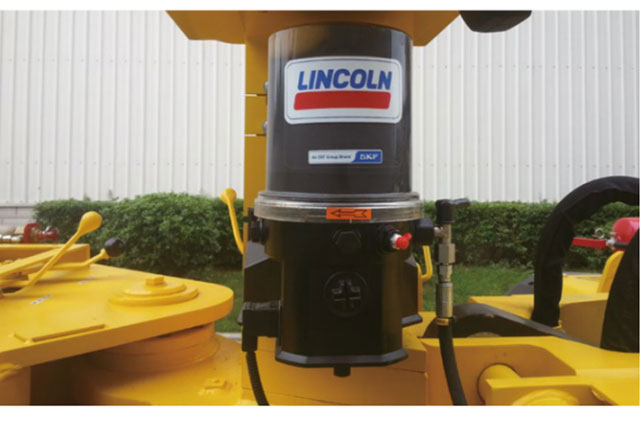

  • Central lubrication system: optional
  • Remote control system: optional
  • Exhaust system: various catalytic converters and silencers from reputable brands
